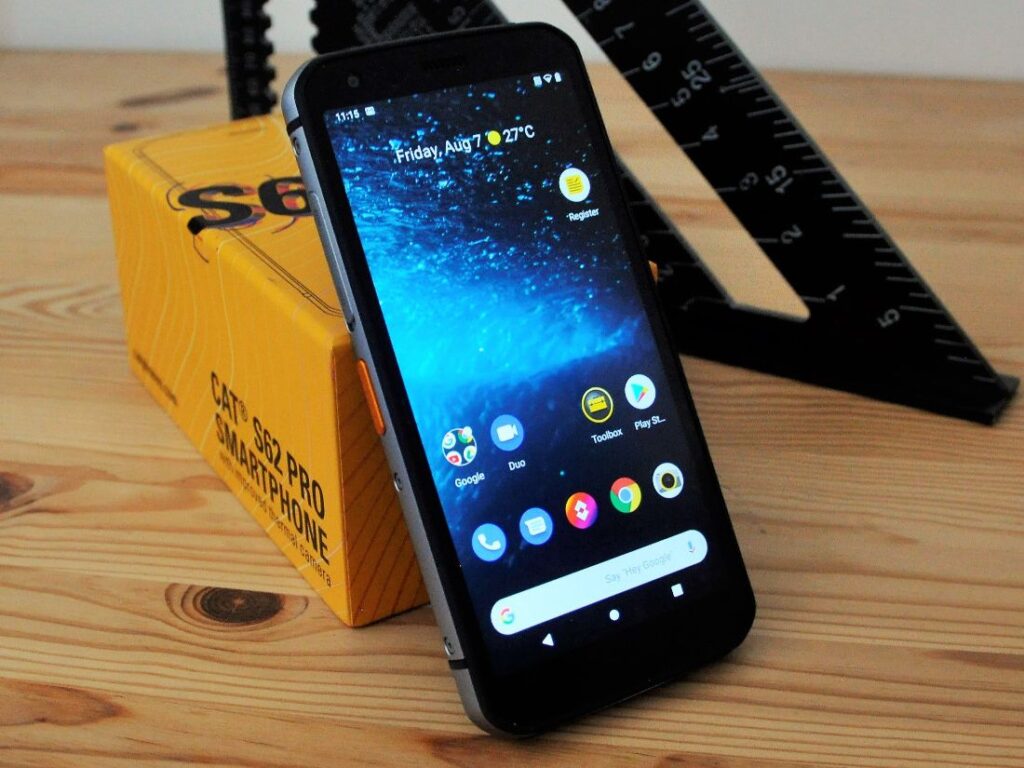

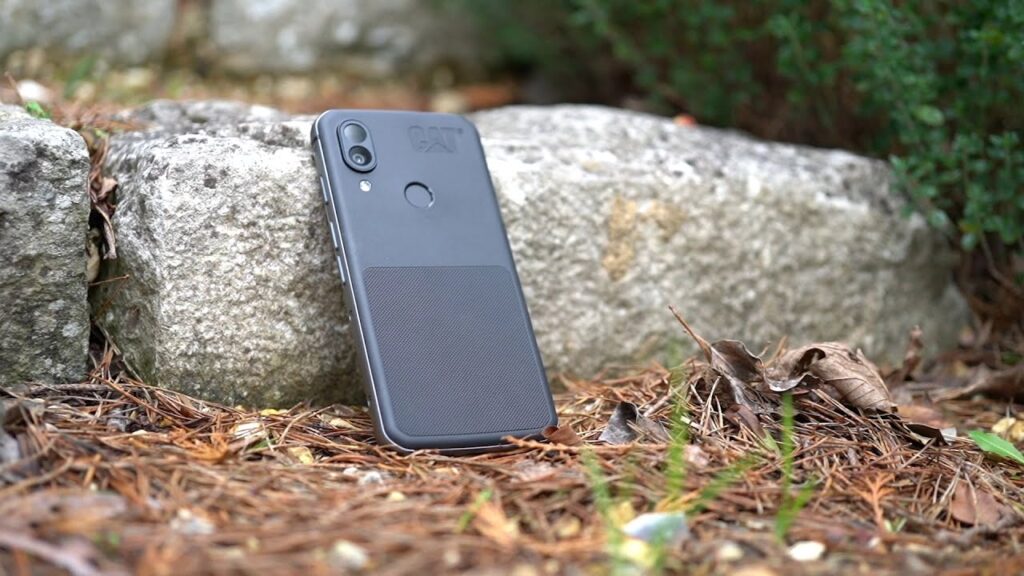

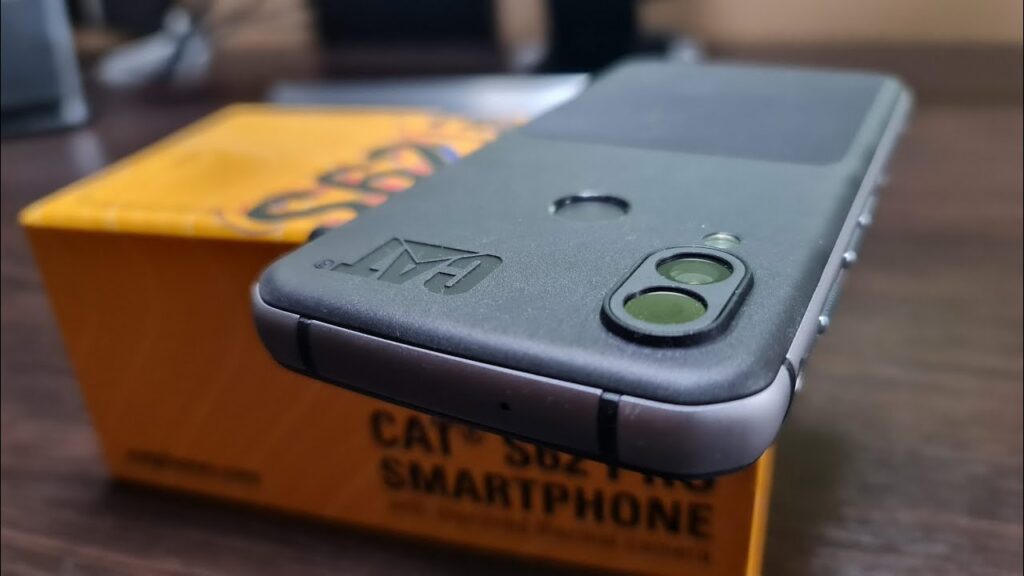

What the Cat S62 Pro Is Built For

Most rugged phones sell toughness. The Cat S62 Pro sells a tool. Strip away the thermal camera and you have a competent, extremely well-sealed mid-range rugged smartphone. Add the FLIR Lepton 3.5 back in and you have a diagnostic instrument that happens to also make calls — which is why this device found its audience among electricians, HVAC and refrigeration techs, building envelope inspectors, facility managers, farmers, and search-and-rescue volunteers rather than among general phone buyers.

That focus explains the trade-offs. The chipset is a Qualcomm Snapdragon 660 with 6 GB of RAM and 128 GB of storage — comfortably enough for inspection apps, mapping, documentation, and email, and not intended for heavy gaming. There’s no 5G. The battery is 4,000 mAh, modest by rugged smartphone standards, rated at up to two days of general use but realistically a full workday under heavy thermal use. Engineering budget went into the sensor and the seals.

The Thermal Camera in Practice

The Lepton 3.5 is the reason to buy this phone, and it’s worth understanding what it does and doesn’t do.

Native resolution is 160 × 120 thermal pixels — four times the pixel count of the sensor in the earlier Cat S61. VividIR upscales and sharpens the output to 1440 × 1080 for display and export, which produces a far more readable image but does not add real thermal detail. Judge the sensor by its native resolution, not the output figure.

The MyFLIR Pro app handles the working features: multiple color palettes, spot temperature measurement, region-of-interest boxes, isotherm and alarm thresholds so the phone flags anything crossing a temperature you set, and variable-intensity MSX blending that overlays visible-light edges onto the thermal frame. You can also alpha-blend the thermal image with the 12 MP visible camera at any ratio.

What this covers in real work: missing or compressed insulation, air leakage around windows and doors, moisture and damp behind finishes, overheating breakers, loose lugs and failing connections, motor and bearing temperature, radiant floor loop tracing, blocked heat exchangers, livestock and wildlife at night, and overheating hydraulics on equipment.

What it doesn’t cover: precision radiometric work to laboratory tolerances, or anything requiring fine spatial detail at distance. For that you want a dedicated thermal camera with a higher-resolution core. For walking a building or a panel and finding the problem, the Cat S62 Pro is genuinely capable.

Durability, Sealing, and Hygiene

The IP69 rating is the specification that separates this rugged smartphone from most of the category. IP68 means it survives sitting in water. IP69 means it survives being blasted with a hot, high-pressure jet — the condition you meet when equipment gets pressure-washed at the end of a shift. The Cat S62 Pro was certified to both, along with 1.8 m drops onto steel, thermal shock from roughly -25 °C to 55 °C, category-4 machinery vibration, humidity, sand, and salt fog.

The hygiene angle is unusual and still useful: the body is chemical-resistant and rated for repeated cleaning with soaps, sanitizers, alcohol wipes, and bleach. In food processing, healthcare, and veterinary settings that matters more than drop height.

Practical note: the USB-C port is sealed with a cover. Open it only when the phone is dry, and check the gasket for grit periodically. That cover is the single most common failure point for waterproofing on any sealed rugged smartphone.

Display, Controls, and Daily Use

The 5.7-inch FHD+ LCD runs at 2160 × 1080 in an 18:9 ratio behind Gorilla Glass 6, tuned for outdoor legibility. Glove mode and wet-finger tracking work as advertised, which matters when you’re switching between a thermal scan and a work order with gloves on.

A rear fingerprint reader handles unlocking. The programmable shortcut key on the side can launch push-to-talk, an SOS/lone-worker app, the flashlight, or the camera — genuinely useful when your other hand is occupied. NFC is present. The card tray is hybrid: two SIMs or one SIM plus microSD, not both. There is no 3.5 mm headphone jack; audio runs over USB-C or a DAC adapter. There’s no wireless charging, and the battery isn’t user-replaceable, since replacing it means breaking and re-establishing the seal.

At 248 grams and 11.9 mm thick, it’s substantial without being one of the 400-gram bricks in this category — a consequence of the modest battery.

The Part Most Product Pages Skip: Brand Status

Cat phones were designed and sold under license from Caterpillar by Bullitt Group, a British company. Bullitt ceased operations and entered administration, ending production of the entire Cat phone line, including the S62 Pro. Caterpillar has since licensed the Cat phone name to a different manufacturer, but that is a new lineup — it does not revive support for the S62 Pro.

What this means concretely if you’re considering one:

• No further software updates. The device shipped on Android 10 with an upgrade to Android 11. That’s where it stays. No new OS versions, no ongoing security patches.
• No manufacturer warranty. Any warranty coverage now comes from the seller or the refurbisher, not from the brand. Read those terms before ordering.
• Parts and service are third-party. Screen and battery replacement is possible through independent repair shops, but there’s no official service channel behind it.
• Counterfeits and mislabeled listings exist. Verify the IMEI against a lookup service, confirm the model designation matches exactly, and check that the serial is laser-etched on the SIM tray rather than printed on a sticker.
• Stock is new-old-stock, refurbished, or used. Condition and remaining battery health vary widely between sellers. On any unit that has been sitting in a warehouse for years, assume the battery has lost some capacity.

None of this makes the phone a bad purchase. It makes it a specific kind of purchase: a capable secondary work tool bought with clear eyes, not a primary phone you expect to carry for years with current software.

Who Should Consider It — and Who Shouldn’t

Consider it if you want integrated thermal imaging without carrying a separate FLIR unit, you work in wet, dusty, chemically aggressive, or wash-down environments, you need a device that can be sanitized repeatedly, and you’re comfortable running an older Android build on a work-only device that doesn’t hold your banking apps.

Look elsewhere if you need a current OS with active security patching, 5G, a manufacturer warranty, all-day-plus battery under heavy load, or flagship camera quality. In that case a current thermal rugged smartphone from an active brand — models built around the newer Lepton cores, or the successor Cat-branded lineup — will serve you better even at a higher price, simply because someone is still standing behind it.

For more information about rugged phones, features, and available models, visit Rugged Smartphone.

Full Specifications

Display	5.7″ FHD+ LCD, 2160 × 1080, 18:9, Gorilla Glass 6, glove & wet touch
Thermal camera	FLIR Lepton 3.5, 160 × 120 native, 1440 × 1080 VividIR output, -20 °C to 400 °C
Thermal software	MyFLIR Pro — palettes, spot temps, MSX, alpha blending, alarms
Processor	Qualcomm Snapdragon 660, octa-core
Memory	6 GB RAM / 128 GB storage, microSD up to 256 GB (hybrid tray)
Rear camera	12 MP dual-pixel, f/1.8
Front camera	8 MP
Battery	4,000 mAh, Quick Charge, no wireless charging, non-user-replaceable
Protection	IP68 + IP69, MIL-SPEC 810H, 1.8 m drop onto steel, 1.5 m / 35 min submersion
Chemical resistance	Soaps, sanitizers, alcohol wipes, bleach
OS	Android 10, upgradable to Android 11
Connectivity	4G LTE, Wi-Fi 5, Bluetooth 5.0, NFC, GPS/GLONASS/Galileo/BeiDou, USB-C
Extras	Programmable key (PTT/SOS/flashlight), rear fingerprint reader, dual SIM
Size & weight	158.5 × 76.7 × 11.9 mm, 248 g

Setting Up the Cat S62 Pro for Accurate Thermal Readings

Out of the box, the Cat S62 Pro produces attractive thermal images that are not necessarily accurate ones. Three settings inside MyFLIR Pro separate a pretty picture from a usable measurement.

Emissivity is the first. Every surface radiates heat differently, and the Cat S62 Pro assumes a default value that suits painted drywall, wood, and most building materials. Point the Cat S62 Pro at bare aluminum, polished copper, or galvanized steel with that default in place and the reading will be badly low. Set emissivity on the Cat S62 Pro to match the material, or put a strip of matte electrical tape on the target and measure that instead.

Reflected temperature matters next. Shiny surfaces mirror heat from whatever is around them, including the person holding the phone. If you see your own silhouette in the thermal frame, step to the side and shoot at an angle rather than straight on.

Distance and spot size are the third. The Lepton 3.5 in the Cat S62 Pro resolves 160 × 120 thermal pixels, so a small target far away lands on a single pixel and averages with everything around it. Get closer. This is the single most common reason people conclude the Cat S62 Pro “reads wrong” when it’s working exactly as designed.

Expect a brief click and a frozen frame every so often — that’s the flat-field correction shutter recalibrating the sensor, and it’s normal behavior on the Cat S62 Pro rather than a fault.

Palettes, Alarms, and How to Actually Work a Scan

Iron and rainbow palettes look impressive but flatten subtle differences. For most inspection work, run the Cat S62 Pro in a grayscale or high-contrast palette and let the automatic span do the work — small deltas show up far more clearly. Save the dramatic palettes for the report photo the client will look at.

The alarm and isotherm functions are where the Cat S62 Pro stops being a camera and starts being an instrument. Set a threshold and the Cat S62 Pro highlights anything crossing it, which turns a panel inspection into a scan rather than a sequence of individual measurements. For electrical work, comparing phases matters more than absolute numbers: three legs under similar load should read similar temperatures, and the outlier is your problem regardless of what the thermometer says. Used that way, the Cat S62 Pro finds faults faster than a handheld spot thermometer ever will.

MSX blending deserves a mention too. With edge detail from the visible camera overlaid, the Cat S62 Pro lets you identify which breaker is hot, not merely that something is. Dial the intensity down when the visible detail starts competing with the thermal data.

Power Management on a 4,000 mAh Rugged Phone

The battery is the weakest part of the Cat S62 Pro, and thermal imaging is not a light workload. On the Cat S62 Pro, continuous scanning with the screen at high brightness will drain it noticeably faster than ordinary phone use. A few habits help: drop the refresh-heavy live view when you’re not actively scanning, keep screen brightness on automatic outdoors, and carry a small power bank or a vehicle charger if the Cat S62 Pro is your primary device on a long day.

If you’re buying a used or long-stored unit, the practical battery life of that particular Cat S62 Pro depends on cell age more than on the spec sheet. Lithium cells degrade whether or not a phone has been used, so a warehouse unit is not automatically better than a lightly used one.

Managing Thermal Images and Reports

Every thermal capture on the Cat S62 Pro saves both the thermal frame and its visible counterpart, which means image folders grow quickly on a busy job. Add a microSD card — remembering that the Cat S62 Pro uses a hybrid tray, so you’re choosing between a second SIM and expandable storage — and set a routine for offloading images at the end of each day.

For report work, capture more than you think you need with the Cat S62 Pro. Wide context shot, then the tight thermal, then a visible photo of the same area. Reviewing later, that sequence is what makes a finding defensible.

Inspecting a Used Cat S62 Pro on Arrival

Since the Cat S62 Pro is no longer produced, most buyers receive a used, refurbished, or long-stored unit. Run through this on the day your Cat S62 Pro arrives, while returns are still open:

• Confirm the IMEI and model designation match the listing, and check for a laser-etched serial on the SIM tray.
• Weigh it if you can — a genuine Cat S62 Pro lands close to 248 grams.
• Open MyFLIR Pro and verify the thermal sensor initializes and the FFC shutter clicks.
• Compare a spot reading against a known reference, such as a cup of boiling water or an infrared thermometer.
• Inspect the USB-C port cover and its gasket for grit, tears, or a loose fit — the seal on the Cat S62 Pro depends on it.
• Test the programmable key, the fingerprint reader, glove mode, and the microphone, since intermittent touch and mic faults are the failures most often reported on this model.
• Run a battery health check app and note the cycle count before you commit.

Where the Cat S62 Pro Still Wins

Newer thermal rugged phones ship with higher-resolution Lepton cores, current Android builds, and far larger batteries. On paper they beat the Cat S62 Pro comfortably. What the Cat S62 Pro still holds is a combination that’s genuinely rare: IP69 wash-down certification, documented chemical and sanitizer resistance, a compact 248-gram body, and thermal calibration that field users describe as consistent. Bought at a clearance or secondhand price as a dedicated work tool — not as a primary phone — the Cat S62 Pro remains one of the most capable thermal devices per dollar in the rugged category.
